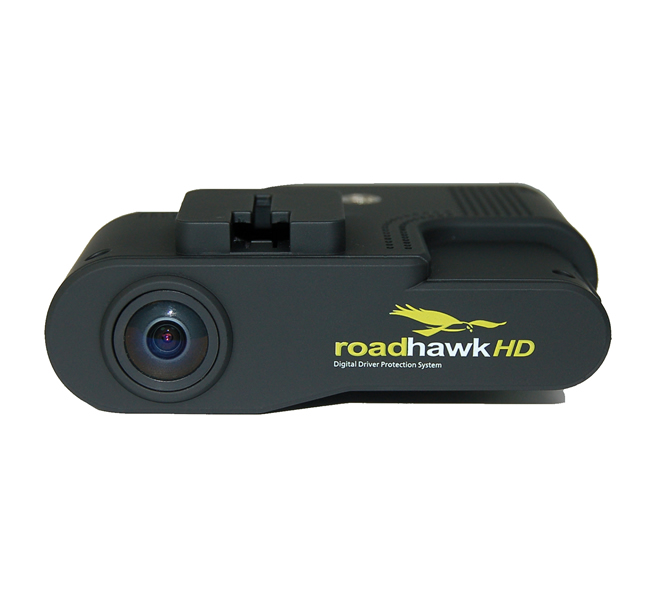

The RoadHawk HD represents a breakthrough in vehicle camera black box video technology.
We listened to feedback from our customers and created an in car camera system capable recording
extremely high quality 1080p video using the latest A5s Processor. We added a faster 5Hz GPS receiver
with ultra-fast lock on time.
RoadHawk HD is the first in car camera on the market fitted with full EIS (electronic image
stabilisation) to give you the smoothest video even on the roughest of road surfaces.
The HD sensor used in the RoadHawk HD not only gives amazingly sharp and colourful daytime images but
also outperforms any other in car camera currently available in low light conditions.
Video files are stored on a normal SD card but this time we have used SDXC technology so you can use
larger capacity SD cards (currently up to 64gb). The videos are stored as standard .MP4 files which can
be played back on just about any modern PC or MAC computer.

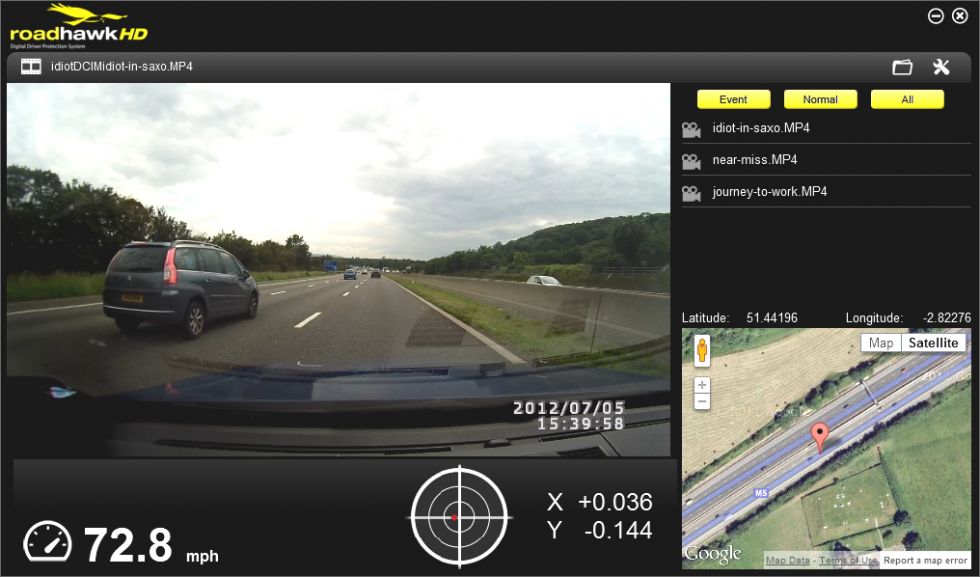

GPS and G-Force data is stored within the video file and can be viewed using the provided viewing
software. You will see the vehicle’s speed, G-Force and position overlaid on to Google maps updating 5
times every second.
Want to see this data on OSX? – No problem. We have written the app to support both windows and OSX!
For vehicles that struggled with GPS reception – we added an external GPS antenna in to the box. You can
use it for even faster lock-on times (usually less than 30 seconds from cold start) and for greater GPS
accuracy.
Just like the original DC-1 camera, the RoadHawk HD can lock files when it detects an impact and a
normal SD card can hold many locked files before they are overwritten.
We know many of our customers will want to use this camera for track/racing purposes and so we have
built-in a mode which allows the camera to make larger files up to 30 minutes long and not overwrite

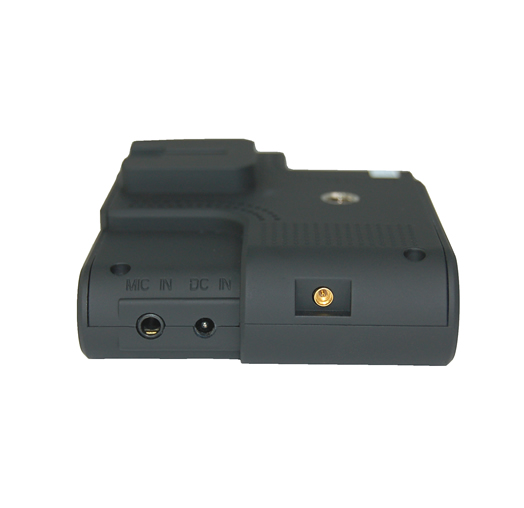

them. This makes the RoadHawk HD a powerful track analysis driving aid. We even included an external
microphone input for connecting higher quality recording equipment or for connecting to a radio
communications device or intercom.

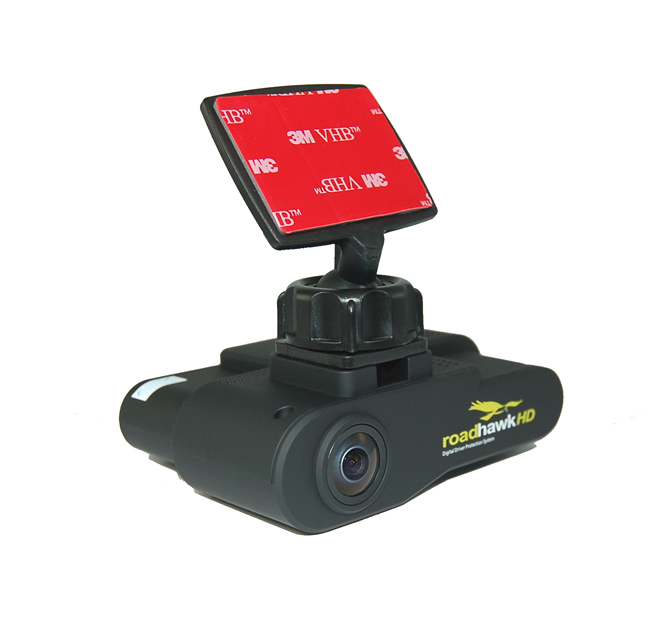

We understand that suction mounts are not always permitted on track and so the RoadHawk HD camera is
supplied with an adhesive windscreen mount as well as a ¼” camera mount for use with roll bar clamps.
If you would also like to protect yourself with a rear facing camera then please have a look at the
RoadHawk 720.
Contents:
-
1 x RoadHawk HD 1080p Camera
- 1 x 8gb Class 10 SD Card

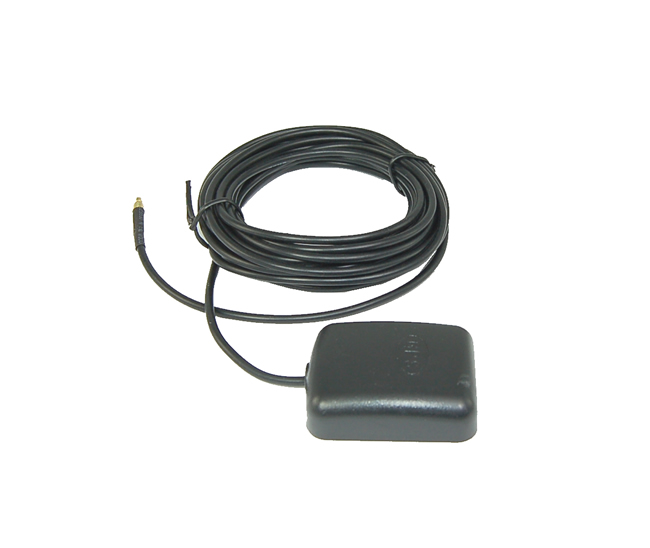

- 1 x External GPS Antenna (in most cases you will not need to use this antenna, it is for vehicles
with heated front screens)
- 1 x Accessory socket power cable)

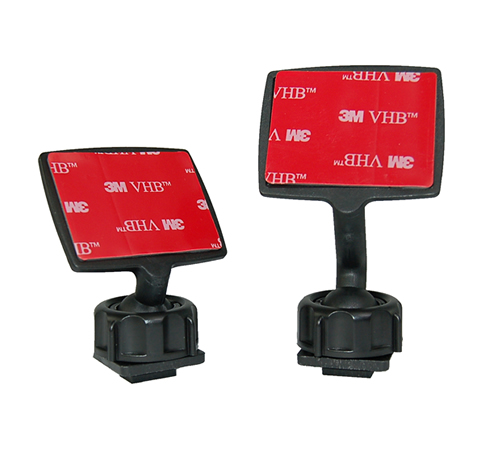

- 1 x Adhesive windscreen mount
- 1 x Adhesive Vertical Windscreen Mount

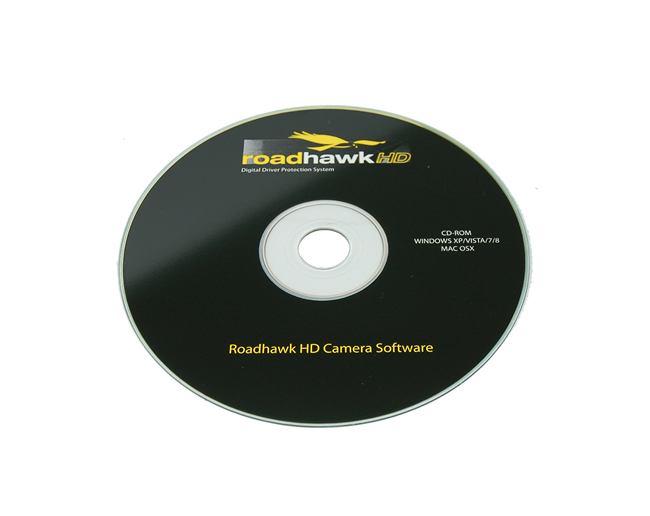

- 1 x Software on CD-ROM (PC & MAC)
- 1 x User Manual
- 8gb (2 hour) SD card supplied
Specifications:
- Video: 1080p (30fps) or 720p (30 or 60fps)
- Audio: Variable sensitivity internal mic – External mic input (3.5mm jack)
- Encoding: H.264 .MP4 Files with embedded G-Force and GPS data
- Bitrate: adjustable from 4Mbits to 12Mbits
- Loop Mode: 1 Min files continuous loop with file locking
- Normal Mode: Up to 30 min long files (no looping or file locking)
- GPS: 5Hz GPS receiver with internal antenna
- External GPS: Waterproof, magnetic external GPS antenna supplied
- Power: 12v to 24v input – 5m Power cable supplied
- EIS: Gyro controlled electronic image stabilisation
- G-Force: 3D G-force Sensor installed (variable sensitivity)
- Internal Power: 2 x Super capacitors to ensure safe camera shutdown
- Memory: Internal 2GB DRAM – SDXC Compatible
- Sensor: High-End Aptina sensor with WDR
- Lens: Wide angled 135 degree lens (@720p resolution)
- Mounting: Standard RoadHawk Adhesive mounting ¼” Camera thread for suction/clamps mounts
- 2 year warranty
